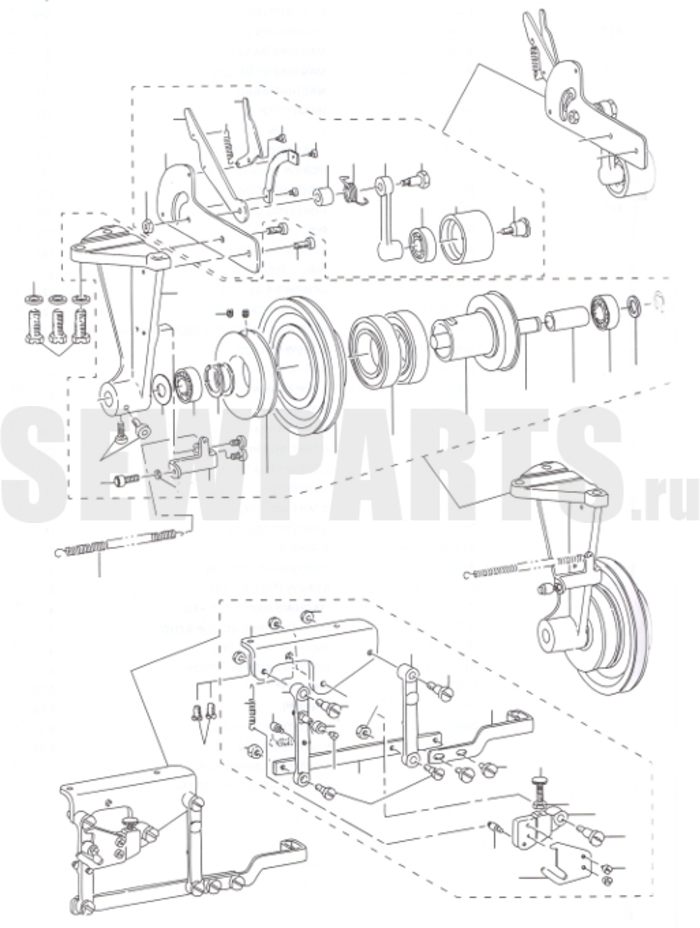

17. Speed transmitter components

Вернуться к выбору схем

Выбор схемы:

17. Speed transmitter components

Как искать запчасти?

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

48

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

100%

№

Артикул Артикул и наименование

Наименование

B71807810A0 tension pulley asm.

40009388 tension pulley bracket

NS6150430SP nut 15/64-28

40009392 tension lever

B4419372000 nipper bar actuating lever spr

40009393 fixing pawl

SD0450211SP hinge screw d= 4.50 h= 2.1

B7186781000 ratchet

SS7110710SP screw 11/64-40 l=7

40009395 lever collar

40009391 tension spring

40009390 tension pulley link

SD0902501SP hinge screw d=9 h=25

SB115000200 radial ball bearing

40009389 tension pulley

SD1501101SP hinge screw d=14.5 h=11

SM6061202TP screw m6 l=12

WP0651056SH washer 6.5x11x1

SS9152130CP screw 15/64-28 l=20.5

B71517810A0B speed transmitter asm.

B7151781000A speed transmitter bracket

RE1200000K0 e-ring 12

SM6061202TP screw m6 l=12

B122177100A high speed washer for bearing

40009235 stop screw asm.

NS6150310SP nut 15/64-28

B7158781000 shifter stopper bracket

SM6061202TP screw m6 l=12

SB115000200 radial ball bearing

RC3500002KP retaining ring 35

B7155781000 accelerating pulley

SS8150710SP screw 15/64-28 l=7

B7154781000 high-speed pulley

SB145000400 radial ball bearing

B7156781000A low-speed pulley

B7152781000A speed transmitter shaft

B7153781000 sleeve

WP1502500SC washer 15x24x2.5

SS7151210SP screw 15/64-28 l=12

B7159781000 shifter tension spring

26101253 shifter base asm.

26101204 shifter base

NS6150310SP nut 15/64-28

26102004 shifter cam spring

NS6160520SP nut 1/4-24

26102202 shifter tension spring

26101402 shifter driving arm

26102509 shifter driving arm screw

26102103 shifter cam roller stud

26102301 shifter cam roller

SS6080610TP screw 1/8-44 l=6

26101600 shifter installing plate

SD0790802SP hinge screw d= 7.94 h= 8.0

26101501 shifter holding arm

26101709 speed transmitter shifter

SS7161040SP screw 1/4-24 l= 9.5

26101303 shifter pin

NS6150430SP nut 15/64-28

26101808 shifter cam installing base

SS7110910SP screw 11/64-40 l=8.5

26101907 shifter cam

26102400 shifter cam suspension
