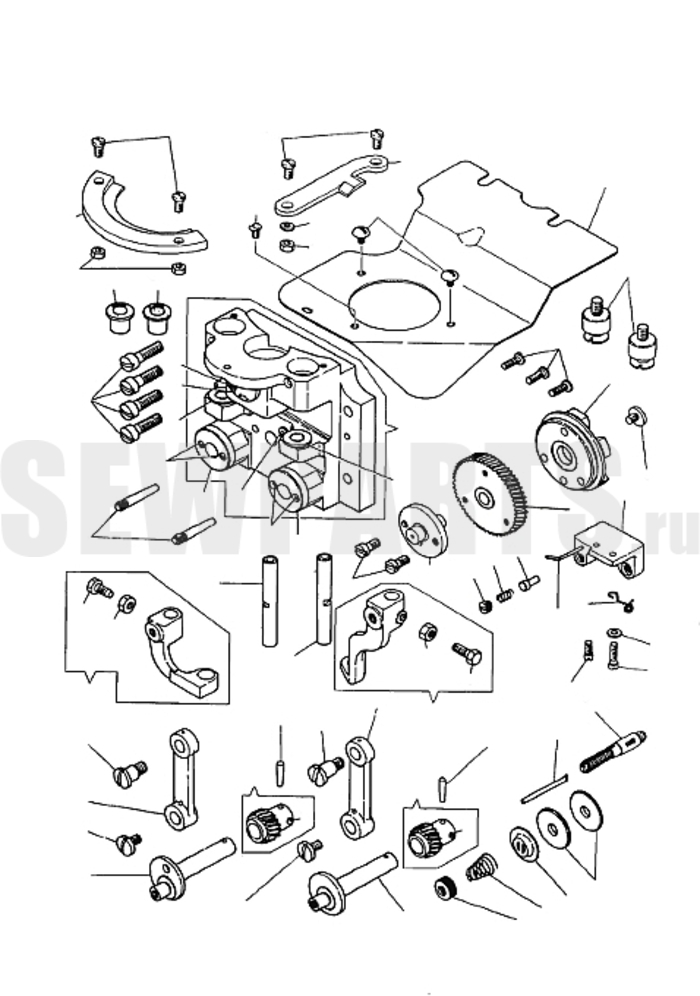

13. Looperframe, looper thread tension complete loop retainer driving crank, looper driving crank

Вернуться к выбору схем

Выбор схемы:

13. Looperframe, looper thread tension complete loop retainer driving crank, looper driving crank

Как искать запчасти?

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

100%

№

Артикул Артикул и наименование

Наименование

548248 Looper Driving Crank

548224 Looper Driving Crank Gear CPL

504007 Screw 11/64x40l3,5

548222 Loop Retainer Driving Crank

548224 Looper Driving Crank Gear CPL

504007 Screw 11/64x40l3,5

548225 Looper Driving Crank Link

545347-452 Screw 3/16x32

545296 Screw 1/4x24l13,1

548225 Looper Driving Crank Link

545347-452 Screw 3/16x32

545296 Screw 1/4x24l13,1

548247 Looper Driving Connection CPL

549154 Screw 11/64x40l10,3

548218 Loop Retainer Driving Connection CPL

549154 Screw 11/64x40l10,3

548219 Slide Block

548219 Slide Block

548223 Driving Crank Bushing

545325 Screw 9/64x40l8,3

548223 Driving Crank Bushing

545325 Screw 9/64x40l8,3

548108 Cutting Shaft Pulley Oil Cup

548221 Slide Rod Bushing «U»

548221 Slide Rod Bushing «U»

367167-452 Looper Frame CPL

548257 Oil Retainer

545301 Screw 9/64x40L6,48

367168 Slide Rod Bushing «L»

367168 Slide Rod Bushing «L»

545302 Screw 1/4x24L19,1

548255 Looper Frame Chip Guard

545299 Screw 9/64x40l4,0

545300 Looper Frame Chip Guard Stud

504084 Screw 11/64x40l8,7

548250 Looper Driving Disc Bearing

548251 Looper Driving Dear

548249 Looper Driving Disc

545297 Screw 3/16x32l6,44

545244-452 Screw «L»

504102 Screw 1/4x40l4,65

548267 Lock Plunger

548261 Looper Guide Stud

548277 Tension Stud Bracket

545306 Screw 9/64x40l10,3

548262 Looper Guide Wire

545040 Screw 9/64x40l13,5

548276 Tension Stud

105185 Looper Tension Disc

548265 Tension Releaser Disc

549159 Screw 9/64x40l2,5

544538 Blade Cam Plate

504010-451 Screw 11/64x40L7,0

545413 Nut 9/64x40

254070 Looper Pull Off Cam Plate

545442 Nut 9/64x40L6,2

504078 Screw 9/64x40L6,2
