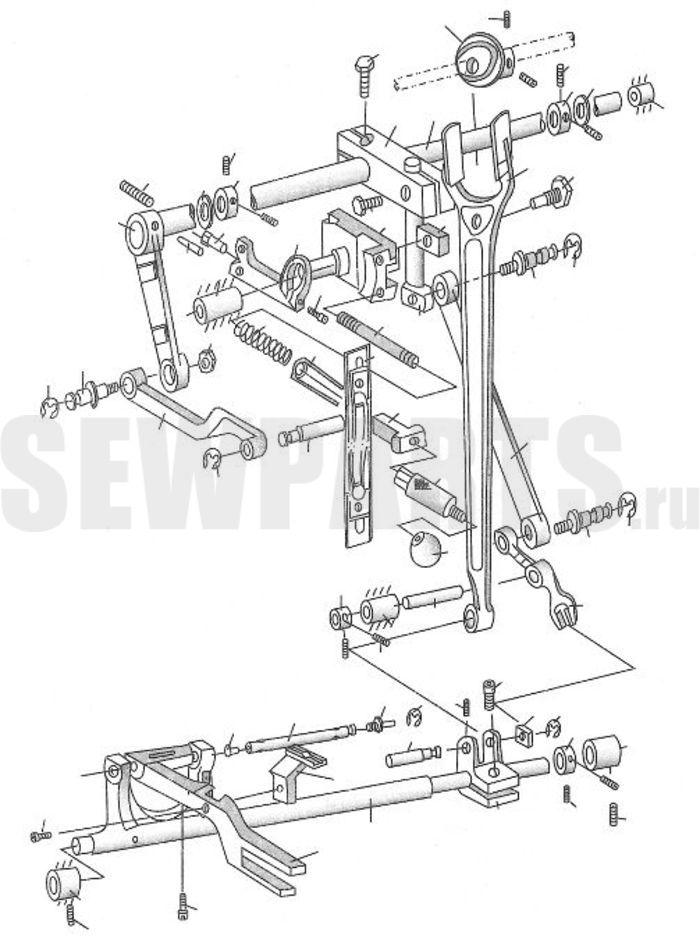

7. Механизм нижнего продвижения материала

Вернуться к выбору схем

Выбор схемы:

7. Механизм нижнего продвижения материала

Как искать запчасти?

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

43

44

44

45

46

47

48

49

50

51

51

52

52

53

53

54

55

56

57

58

59

60

61

62

62

63

100%

№

Артикул Артикул и наименование

Наименование

GT103 feeding cam

GS113_6 feeding cam screw (grub socket head cap screw m6x8)

GH125 tooth fork

GZ129 stitch slider screw

GK245 stitch seat slider

GK246 stitch seat

GK249_2 stitch seat fixed stand

GO120 stitch seat axle sleeve

GL204_2 stitch seat spacing nut

GS113_7 stitch seat spacing regulation screw (grub socket head cap screw m6x25)

GS133_9 stitch seat fixed stand locking screw (socket head cap screw m5x20)

GZ130 stitch regulation screw (m8)

13

GW210 Под заказ Пружина (12,№22) Тип.A-450 (Арт.GW210)

GW209 stitch screw sleeve leaf

15

Под заказ Втулка (арт. GZ131)

16

GZ132 Под заказ Шпилька (12, №24) Тип.A-450 (Арт.GZ132)

GKS247 stitch handle ball

GK248 stitch spacing board

GZ121 bottom feeding axle

GK252 tooth stand

GS123_3 tooth stand fastening screw (m5x7.5 plain screw)

22

GM-106 В наличии (на удаленном складе) Зубчатая рейка тип. Aurora A-252 (арт. GM-106)

GS123_4 machine toth screw (m5x12 plain screw)

GZ122_2 tooth stand axle

GK296 oil pipe small joint

GW208 tooth stand axle jump ring (ф8)

GKS253 tooth stand oil seal

GO122. bottom feeding axle front axle sleeve

GO121 bottom feeding axle back axle sleeve

GK251 bottom feeding retainer ring

GS113_8 bottom feeding axle back axle sleeve retainer ring screw (grub socket head cap screw m6x10)

GH154 bottom feeding back crank

GS134_11 bottom feeding axle back axle sleeve fastening screw (socket head cap screw m6x10)

GX117_2 feeding crank slider pin axle

GS101_2 pin axle top wire (grub socket head cap screw m4x4)

GK250 feeding crank slider

GW204 slider jump spring (ф7)

GH156 upper feeding small tooth fork

GZ123_2 small tooth fork central axle

GO123. central axle cooper sleeve

GK256 central axle retainer ring

GS112_6 central axle retainer ring fastening screw (grub socket head cap screw m5x5)

GZ133 upper feeding connecting pin

GW205 upper feeding connecting pin jump ring (ф10)

GH155 upper feeding big connecting bar

GK254 upper feeding adjustment bar

GH152. upper feeding back crank seat

GS145_3 upper feeding back crank seat fastening screw (m8x25 external hexagon screw)

GS145_4 upper feeding back crank seat fastening screw (m8x18 external hexagon screw)

GZ120. upper feeding axle

GK255 upper feeding axle retainer axle

GS113_9 upper feeding axle retainer axle fastening screw (grub socket head cap screw m6x6)

GK297 upper feeding axle shim

GH153. upper feeding front crank

GX118 upper feeding front crank taper pin (ф4х26 1:50)

GH151. copper connecting bar

GZ134 front crank cooper connecting bar pin

GL204_3 front crank cooper connecting bar pin nut (m6)

GW206 front crank cooper connecting bar pin jump spring (ф8)

GZ135_2 pendulum stand cooper connecting bar pin

GW207 pendulum stand cooper connecting bar pin jump spring (ф6)

GS113_10 axle sleeve fastening screw (grub socket head cap screw m6x10)

GO124. upper feeding axle back axle sleeve
