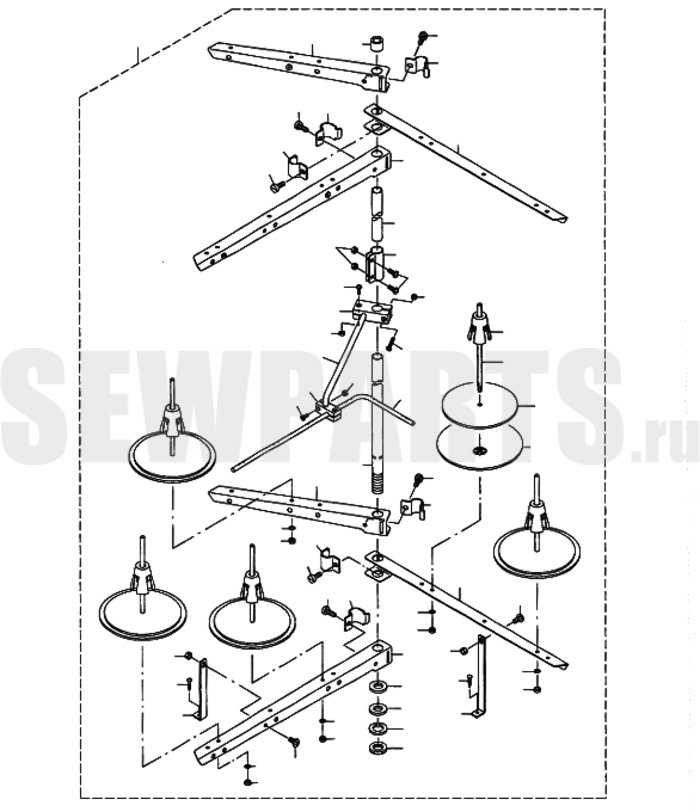

22. Thread Stand Components (MO-6716S Special Order Parts)

Вернуться к выбору схем

Выбор схемы:

22. Thread Stand Components (MO-6716S Special Order Parts)

Как искать запчасти?

1

2

2

3

4

4

5

5

5

5

5

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

20

20

20

20

20

21

22

23

24

25

26

27

27

28

28

29

30

31

31

31

31

31

32

32

32

32

32

33

33

34

34

35

35

36

100%

№

Артикул Артикул и наименование

Наименование

131-67853 Thread Standing Device Asm.

131-68851 Thread Standing Arm Asm. Long

131-68505 Thread Standing Arm Support B

131-68802 Thread Standing Arm, Long

229-30705 Thread Guide Arm Joint

229-31406 Thread Standing Rod Rubber Cap

229-30408 Thread Standing Rod, Upper

229-31307 Thread Standing Rod Joint

131-67903 Thread Standing Thread Guide

131-68000 Thread Guide Base, Lower

131-68109 Thread Guide Arm Base

131-68208 Thread Guide Arm Base

229-30309 Thread Standing Rod, Lower

229-31109 Spool Retainer

229-31000 Spool Pin

229-30903 Spool Rest Cushion

229-30804 Spool Rest

131-68406 Thread Standing Arm Support A

131-68950 Thread Standing Arm A Asm.

SM-6061610-SC Screw (M6 L=16)

SM-4051405-SE Screw (M5 L=14)

NM-6050001-SE Nut (M5)

SM-4041001-SC Screw (M4x0.7 L=10)

NM-6040002-SE Nut (M4x0.7)

SM-4041201-SC Screw (M4 L=12)

SM-4042001-SC Screw (M4x20)

NM-6040002-SE Nut (M4x0.7)

WP-1612616-SE Washer (16x30x2.6)

WS-1643202-KR Spring Washer

NM-6160511-SE Nut (M16x1.5)

NM-6050001-SE Nut (M5)

WS-0510002-KN Spring Washer

SK-3382001-SE Screw (D=3.8 L=20)

SM-4061201-SE Screw (M6 L=12)

NM-6060001-SE Nut (M6)

131-68901 Thread Standing Arm A
